Hi users and developers!
We announce the dropping schedule for TD Agent 4 development.
Since td-agent 4.0.0 was released in 2020, td-agent 4 has been maintained for a long time.
As new major version of td-agent 4 was rebranded (to fluent-package
v5), and released in August 2023,
we decided to stop maintaining td-agent 4.
As you know, already stepping down maintenance activity, new minor update for td-agent 4 will not be shipped anymore. (td-agent v4.5.1 will be the last release of this series, it will be shipped in this month.)
Thus, we recommend using fluent-package v5 for new deployment :)
There is a good article to do it.
Follow the above instructions.
Hi users!
We have released fluent-package
v5.0.0 (Release Candidate) and
the following v5.0.1 (General Availability).
fluent-package is formerly known as td-agent
and a stable distribution package of Fluentd.
In this blog article, we explains why the concept of channels is introduced.
In the previous versions, td-agent
was shipped as quarterly releases in most cases.
It sometimes contains fluentd minor upgrade occasionally, which means that not only bug or security fixes,
but also contains new features. As a result, there was a case that the stability was affected unexpectedly.
In point view of adopting fluentd (and td-agent
) for enterprise services, there was a requirement for the distribution which contains security or bug fixes only
and scheduled lifecycle of it.
The LTS release is the answer to support them.

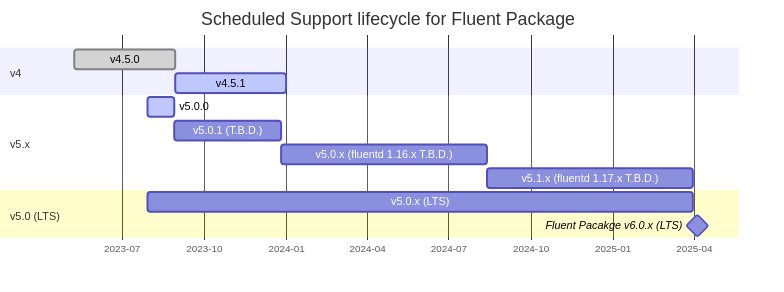

There are two channels of support lifecycle.
Here is the difference of these channels.
fluent-package
v6.0.0, and will be shipped in 2025.As for fluent-package v5,
Current releases and future plans:
Release Version | Release Date | End of life |
---|---|---|
v4.5.1 | Aug, 2023 | Dec, 2023 |
v5.0.1 (LTS) | Aug 29, 2023 | March, 2025 |
v6.0.0 (LTS) | March, 2025? (T.B.D.) | T.B.D. |
Happy logging!
fluent-package
"v5" is available since August 2023.
fluent-package
is the successor of td-agent
"v4".
In this post, we will share the steps we've tested and hopefully this will help your experience from v4 to v5.
fluent-package
was formerly known as td-agent
.
In the past, Treasure Data, Inc took the initiative to provide the package, but now the Fluentd community does it. This is why the package name was changed.
To represent "All in one package of Fluentd which contains Fluentd and related gem packages", the package name was changed to fluent-package
.
Even though package name was changed, Treasure Data, Inc still sponsor the package delivery resources.
There are two channels for fluent-package
.
One is normal release version which will be updated regularly - rapid release development style (td-agent v4
was released like this in almost every quarter).
In this version, fluentd will be eventually updated to newer minor version (e.g. 1.17.x and so on)
The other is a more conservative maintenance version (Long Term Support) which will not introduce a new feature. It only applies teeny update such as security or bug fix only. LTS for v5 will be supported until March, 2025.
More details about difference between normal release version and LTS version will be explained in Scheduled support lifecycle announcement about Fluent Package.
In the fluent-package
v5, core components like ruby (2.7.8 -> 3.2.2) and OpenSSL (1.1.1 -> 3.1.0 for Windows, 3.0.8 for macOS) were updated.
The major changes are as follows.
td-agent
command is renamed to fluentd
.
$ td-agent --version
-> $ fluentd --version
td-agent-gem
command is renamed to fluent-gem
.
$ td-agent-gem list
-> $ fluent-gem list
td-agent
is renamed to fluentd
.
$ systemctl status td-agent
-> $ systemctl status fluentd
With the change of package name, install path, service name (e.g. /opt/fluent, fluentd.service) and so on were also changed.
Basically, for td-agent
v4 users, it aims to keep compatibility as far as possible by executing the migration process with copying old files or providing
symbolic links for it.
If you want to know the details of upgraded components, see CHANGELOG.md.
NOTE: We explain for platform specific issue as "Additional hints for v4 users" section below.
During the upgrade process, plugins bundled in td-agent
are automatically upgraded. With that being said, other plugins added on your own are not included. You should review if you need to upgrade plugins since some directory structures from v4 and v5 are changed.
In this post, I will show steps with plugins added on my own, "fluent-plugin-concat" for instance. Here is sample configuration file I used through steps.
<filter docker.log>
@type concat
key message
multiline_start_regexp /^Start/
</filter>
$ td-agent-gem list | grep fluent-plugin*
fluent-plugin-calyptia-monitoring (0.1.3)
fluent-plugin-concat (2.5.0)
fluent-plugin-elasticsearch (5.3.0)
fluent-plugin-flowcounter-simple (0.1.0)
fluent-plugin-kafka (0.19.0)
fluent-plugin-metrics-cmetrics (0.1.2)
fluent-plugin-opensearch (1.1.0)
fluent-plugin-prometheus (2.0.3)
fluent-plugin-prometheus_pushgateway (0.1.0)
fluent-plugin-record-modifier (2.1.1)
fluent-plugin-rewrite-tag-filter (2.4.0)
fluent-plugin-s3 (1.7.2)
fluent-plugin-sd-dns (0.1.0)
fluent-plugin-systemd (1.0.5)
fluent-plugin-td (1.2.0)
fluent-plugin-utmpx (0.5.0)
fluent-plugin-webhdfs (1.5.0)
You can also find installed plugins under /opt/td-agent/lib/ruby/gems/2.7.0/gems/
directories.
$ ls -l /opt/td-agent/lib/ruby/gems/2.7.0/gems |grep fluent-plugin*
drwxr-xr-x. 5 root root 175 7月 14 03:01 fluent-plugin-calyptia-monitoring-0.1.3
drwxr-xr-x. 4 root root 206 7月 14 03:03 fluent-plugin-concat-2.5.0
drwxr-xr-x. 5 root root 4096 7月 14 03:01 fluent-plugin-elasticsearch-5.3.0
drwxr-xr-x. 4 root root 205 7月 14 03:01 fluent-plugin-flowcounter-simple-0.1.0
drwxr-xr-x. 6 root root 191 7月 14 03:01 fluent-plugin-kafka-0.19.0
drwxr-xr-x. 5 root root 190 7月 14 03:01 fluent-plugin-metrics-cmetrics-0.1.2
drwxr-xr-x. 5 root root 4096 7月 14 03:01 fluent-plugin-opensearch-1.1.0
drwxr-xr-x. 5 root root 215 7月 14 03:01 fluent-plugin-prometheus-2.0.3
drwxr-xr-x. 6 root root 238 7月 14 03:01 fluent-plugin-prometheus_pushgateway-0.1.0
drwxr-xr-x. 4 root root 176 7月 14 03:01 fluent-plugin-record-modifier-2.1.1
drwxr-xr-x. 3 root root 210 7月 14 03:01 fluent-plugin-rewrite-tag-filter-2.4.0
drwxr-xr-x. 5 root root 230 7月 14 03:01 fluent-plugin-s3-1.7.2
drwxr-xr-x. 3 root root 170 7月 14 03:01 fluent-plugin-sd-dns-0.1.0
drwxr-xr-x. 3 root root 49 7月 14 03:01 fluent-plugin-systemd-1.0.5
drwxr-xr-x. 5 root root 221 7月 14 03:01 fluent-plugin-td-1.2.0
drwxr-xr-x. 5 root root 166 7月 14 03:01 fluent-plugin-utmpx-0.5.0
drwxr-xr-x. 4 root root 191 7月 14 03:01 fluent-plugin-webhdfs-1.5.0
$ sudo systemctl stop td-agent
Even though fluent-package
supports upgrade without stopping service, but recommend to stop explicitly.
When you use RedHat or derivative distributions, you can run following script if you want to install normal release version of fluent-package
.
# curl -L https://toolbelt.treasuredata.com/sh/install-redhat-fluent-package5.sh | sh
When you use RedHat or derivative distributions, you can run following script if you want to install LTS (Long term support) version of fluent-package
.
# curl -L https://toolbelt.treasuredata.com/sh/install-redhat-fluent-package5-lts.sh | sh
You can find more information about the installation script in Fluend Doc - Installation.
$ LANG=C yum info fluent-package
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
* base: ftp.riken.jp
* extras: ftp.riken.jp
* updates: ftp.riken.jp
Installed Packages
Name : fluent-package
Arch : x86_64
Version : 5.0.0
Release : 1.el7
Size : 64 M
Repo : installed
From repo : /fluent-package-5.0.0-1.el7.x86_64
Summary : The stable distribution of Fluentd
URL : https://www.treasuredata.com/
License : ASL 2.0
Description : The stable distribution of Fluentd, called td-agent.
$ sudo systemctl daemon-reload
$ sudo systemctl enable --now fluentd
$ fluent-gem list |grep fluent-plugin*
fluent-plugin-calyptia-monitoring (0.1.3)
fluent-plugin-elasticsearch (5.3.0)
fluent-plugin-flowcounter-simple (0.1.0)
fluent-plugin-kafka (0.19.0)
fluent-plugin-metrics-cmetrics (0.1.2)
fluent-plugin-opensearch (1.1.0)
fluent-plugin-prometheus (2.0.3)
fluent-plugin-prometheus_pushgateway (0.1.0)
fluent-plugin-record-modifier (2.1.1)
fluent-plugin-rewrite-tag-filter (2.4.0)
fluent-plugin-s3 (1.7.2)
fluent-plugin-sd-dns (0.1.0)
fluent-plugin-systemd (1.0.5)
fluent-plugin-td (1.2.0)
fluent-plugin-utmpx (0.5.0)
fluent-plugin-webhdfs (1.5.0)
You can see bundled plugins are upgraded as well but can not find plugins added on your own. In this post, added plugin was "fluent-plugin-concat" and it is not shown in installed list.
$ sudo fluent-gem install fluent-plugin-concat
$ fluent-gem list | grep fluent-plugin*
fluent-plugin-calyptia-monitoring (0.1.3)
fluent-plugin-concat (2.5.0)
fluent-plugin-elasticsearch (5.3.0)
fluent-plugin-flowcounter-simple (0.1.0)
fluent-plugin-kafka (0.19.0)
fluent-plugin-metrics-cmetrics (0.1.2)
fluent-plugin-opensearch (1.1.0)
fluent-plugin-prometheus (2.0.3)
fluent-plugin-prometheus_pushgateway (0.1.0)
fluent-plugin-record-modifier (2.1.1)
fluent-plugin-rewrite-tag-filter (2.4.0)
fluent-plugin-s3 (1.7.2)
fluent-plugin-sd-dns (0.1.0)
fluent-plugin-systemd (1.0.5)
fluent-plugin-td (1.2.0)
fluent-plugin-utmpx (0.5.0)
fluent-plugin-webhdfs (1.5.0)
As for fluent-package v5, "fluent-plugin-concat" was installed under "/opt/fluent/lib/ruby/gems/3.2.0/gems/" directories.
$ ls -l /opt/fluent/lib/ruby/gems/3.2.0/gems/ |grep fluent-plugin*
drwxr-xr-x. 5 root root 175 7月 14 03:14 fluent-plugin-calyptia-monitoring-0.1.3
drwxr-xr-x. 4 root root 206 7月 14 03:16 fluent-plugin-concat-2.5.0
drwxr-xr-x. 5 root root 4096 7月 14 03:14 fluent-plugin-elasticsearch-5.3.0
drwxr-xr-x. 4 root root 205 7月 14 03:14 fluent-plugin-flowcounter-simple-0.1.0
drwxr-xr-x. 6 root root 191 7月 14 03:14 fluent-plugin-kafka-0.19.0
drwxr-xr-x. 5 root root 190 7月 14 03:14 fluent-plugin-metrics-cmetrics-0.1.2
drwxr-xr-x. 5 root root 4096 7月 14 03:14 fluent-plugin-opensearch-1.1.0
drwxr-xr-x. 5 root root 215 7月 14 03:14 fluent-plugin-prometheus-2.0.3
drwxr-xr-x. 6 root root 238 7月 14 03:14 fluent-plugin-prometheus_pushgateway-0.1.0
drwxr-xr-x. 4 root root 176 7月 14 03:14 fluent-plugin-record-modifier-2.1.1
drwxr-xr-x. 3 root root 210 7月 14 03:14 fluent-plugin-rewrite-tag-filter-2.4.0
drwxr-xr-x. 5 root root 230 7月 14 03:14 fluent-plugin-s3-1.7.2
drwxr-xr-x. 3 root root 170 7月 14 03:14 fluent-plugin-sd-dns-0.1.0
drwxr-xr-x. 3 root root 49 7月 14 03:14 fluent-plugin-systemd-1.0.5
drwxr-xr-x. 5 root root 221 7月 14 03:14 fluent-plugin-td-1.2.0
drwxr-xr-x. 5 root root 166 7月 14 03:14 fluent-plugin-utmpx-0.5.0
drwxr-xr-x. 4 root root 191 7月 14 03:14 fluent-plugin-webhdfs-1.5.0
$ sudo systemctl start fluentd
$ tail -100f /var/log/fluent/fluentd.log
Now, upgrading steps are completed. Happy Logging!
fluentd-apt-source
package will be marked as a transitional package.
you can remove it safely with sudo apt purge fluentd-apt-source
.td-agent.service
, you must explicitly execute the following commands: $ sudo systemctl unmask td-agent
$ sudo systemctl enable fluentd
td-agent.service
, you must explicitly execute the following command: $ sudo systemctl enable fluentd
fluent-package
installer was changed not to start service by default.
If you want to start fluentd
as a service, execute the following command with administrator privileges. c:\opt\fluent> net start fluentdwinsvc
WARNING: Currently we have no plan to officially support dmg version of fluent-package
yet.
It is just modified to be a minimally buildable state, it is for testing purpose only.
Hi users!
We have released td-agent v4.5.0. td-agent is a stable distribution package of Fluentd.
We are preparing next major version of td-agent which bundles Ruby 3.2. It's still work in progerss, we'll announce it as soon as we are ready for it.
Please note that the package name will be changed to fluent-package
.
Please see the following discussion for more detail: https://github.com/fluent/fluentd/discussions/3860
Please see the download page.
Hi users!
We have released v1.16.1 on 2023-04-17. ChangeLog is here.
In the previous version v1.16.0, there was a bug that caused Fluentd to fail to start with certain secondary configurations.
In this release, we fixed that problem and added a new feature of in_tcp
.
And other some improvements!
in_tcp
: Add message_length_limit
to drop large incoming data. #4137out_secondary_file
: Fix NameError of SecondaryFileOutput
when setting other secondariesIn the previous version v1.16.0, there was a bug that if you set another secondary without ever setting out_secondary_file
, Fluentd fails to start with the following error.
/path/to/fluentd/lib/fluent/plugin/output.rb:429:in `configure': uninitialized constant Fluent::Plugin::Output::SecondaryFileOutput (NameError)
if (@secondary.class != SecondaryFileOutput) &&
^^^^^^^^^^^^^^^^^^^
In this release, we fixed this problem.
See #4124 for more information.
Buffer
: Fix that compress
setting causes unexpected error when receiving already compressed MessagePackWith this release, it is now possible that Fluentd forwards already compressed MessagePack data to another Fluentd as is (without decompressing).
A possible use case is two-stage forwarding.
Forwarder1(out_forward
) -> Forwarder2(in_forward
, out_forward
) -> Aggregator(in_forward
)
In this case, Forwarder2 should process the data of CompressedMessagePackEventStream
as is (without decompressing) and re-forward the data to Aggregator.
Until this version, a bug prevented us from setting Forwarder2's compress gzip
of out_forward or buffer.
It resulted in the following error.
[error]: #0 unexpected error on reading data host="..." port=... error_class=ArgumentError error="unknown keyword: :packer"
So we had no choice but to decompress and forward it from Forwarder2 to Aggregator.
With this release, we can now set compress gzip
for Forwarder2!
See #4146 and #4147 for more information.
UDPServer
over max_bytes
on Windows. #4131Enjoy logging!
Hi users!
We have released v1.16.0 on 2023-03-29. ChangeLog is here.
This release is a new release of v1.16 series. In this release, we enhanced the feature for chunk file corruption and fixed some bugs, mainly about logging and race condition errors.
Some chunk files in buffer_file or buffer_file_single are possibly corrupted after Fluentd stopped abnormally, such as due to a power failure.
Fluentd has a feature to backup unrecoverable chunks as before. However, when Fluentd resumes, remaining corrupted chunk files were just deleted.
Since this release, Fluentd also backups those files at resuming. In addition, Fluentd outputs some useful logs about possibly corrupted chunk files due to an abnormal termination.
Please see the document and the following PRs for more information.
flush_at_shutdown true
in_tcp
: Add send_keepalive_packet
optionSince this release, you can use send_keepalive_packet option for in_tcp
, as well as in_forward or in_syslog.
Please see the document and #3961 for more information.
out_secondary_file
: Fix race condition. #4081out_secondary_file
: Suppress warning using different secondary for outsecondaryfile. #4087out_forward
: Fix error of ack handling conflict with require_ack_response
. #4030format
setting applied. #4091system
configs are not reflected. #4064, #4065
SIGTERM
. #4043system_config.workers
value can be wrongly 1
at config check at startup. #4066Fluent::Config::Element
can be passed to Fluent::Plugin::Base::configure()
. #4066Enjoy logging!
Hi users!
We have released v1.15.3 on 2022-11-02. ChangeLog is here.
In this release, we fixed several bugs.
out_file
: Fix the multi-worker check with <worker N-M>
directiveIn the v1.15.1, we added a new feature to prevent write conflicts between multiple workers.
However, this fix didn't work correctly with <worker N-M>
directive.
With this setting, the configuration check before starting the supervisor mistakenly determines
that the setting of out_file
is invalid and causes Fluentd to terminate.
In this release, we fixed this problem.
See #3942 for more information.
We can configure log rotation setting as follows.
On Windows, the log files must be separated by each process.
NOTE: When --log-rotate-age is specified on Windows, log files are separated into log-supervisor-0.log, log-0.log, ..., log-N.log where N is generation - 1 due to the system limitation. Windows does not permit delete and rename files simultaneously owned by another process.
However, that log rotation setting in the system-directive didn't satisfy this and Fluentd outputted the logs of the supervisor process into the log file of the worker-0 process.
This could cause errors during log rotation.
In this release, we fixed this problem.
See #3939 for more information.
!include
directive in YAML config formatIn the v1.15.0, we supported YAML config format.
However, handling glob of !include
directive was leaked.
In this release, we supported it.
See #3917 for more information.
oj
optionsIn this release, we removed the following oj
options.
FLUENT_OJ_OPTION_MODE=object
FLUENT_OJ_OPTION_MAX_NESTING
FLUENT_OJ_OPTION_MODE=object
was unsecure, so we removed it.
This option is not used unless a user explicitly sets the environmental variable, so almost all users do not need to care about this vulnerability.
FLUENT_OJ_OPTION_MAX_NESTING
was not supported, so we removed it.
See #3929 for more information.
Enjoy logging!
Hi users!
We have released td-agent v4.4.2. td-agent is a stable distribution package of Fluentd.
<worker 0-N>
directive!include
directive in YAML config formatPlease see the download page.
Hi users!
We have released td-agent v4.4.1. td-agent is a stable distribution package of Fluentd.
--daemon
flagand
chunklimit_size`Please see the download page.
Hi users!
We have released v1.15.2. ChangeLog is here.
In this release, we fixed the problem that out_file
's append mode with --daemon
flag failed to flush the buffer.
out_file
: Fix append mode with --daemon
flagIn the previous version v1.15.1, we added a new feature to prevent write conflicts between multiple workers.
However, this fix didn't work correctly with --daemon
flag of Fluentd command.
With that flag, out_file
in the append mode fails to flush the buffer.
This is a critical bug for td-agent, because td-agent uses --daemon
flag by default.
In this release, we fixed this problem.
See #3864 for more information.
enable_jit
. #3857Enjoy logging!
Fluentd is an open source data collector to simplify log management.
2023-08-29: Drop schedule announcement about EOL of Treasure Agent (td-agent) 4
2023-08-29: Scheduled support lifecycle announcement about Fluent Package
2023-07-31: Upgrade to fluent-package v5
2023-05-08: td-agent v4.5.0 has been released
2023-04-20: Fluentd v1.16.1 has been released
2023-03-29: Fluentd v1.16.0 has been released
2022-11-11: Fluentd v1.15.3 has been released
2022-11-08: td-agent v4.4.2 has been released
2022-08-23: td-agent v4.4.1 has been released
2022-08-22: Fluentd v1.15.2 has been released
Want to learn the basics of Fluentd? Check out these pages.
Couldn't find enough information? Let's ask the community!
You need commercial-grade support from Fluentd committers and experts?
©2010-2023 Fluentd Project. ALL Rights Reserved.
Fluentd is a hosted project under the Cloud Native Computing Foundation (CNCF). All components are available under the Apache 2 License.
